669280-001 – HP 366FLR PCI-e 4-Port 1GB Ethernet

HP 366FLR PCIe 4-Port 1Gb Ethernet Adapter – 669280-001

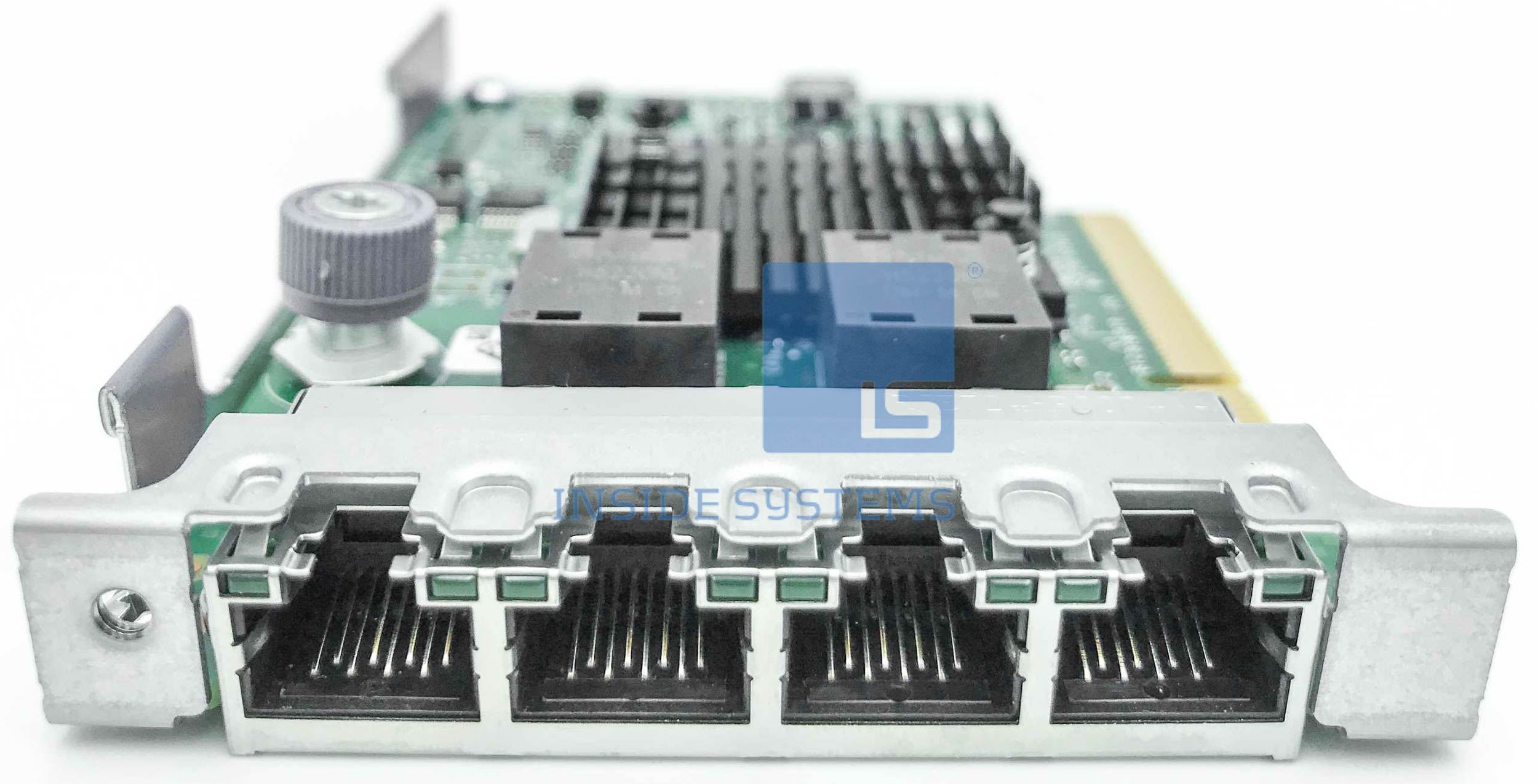

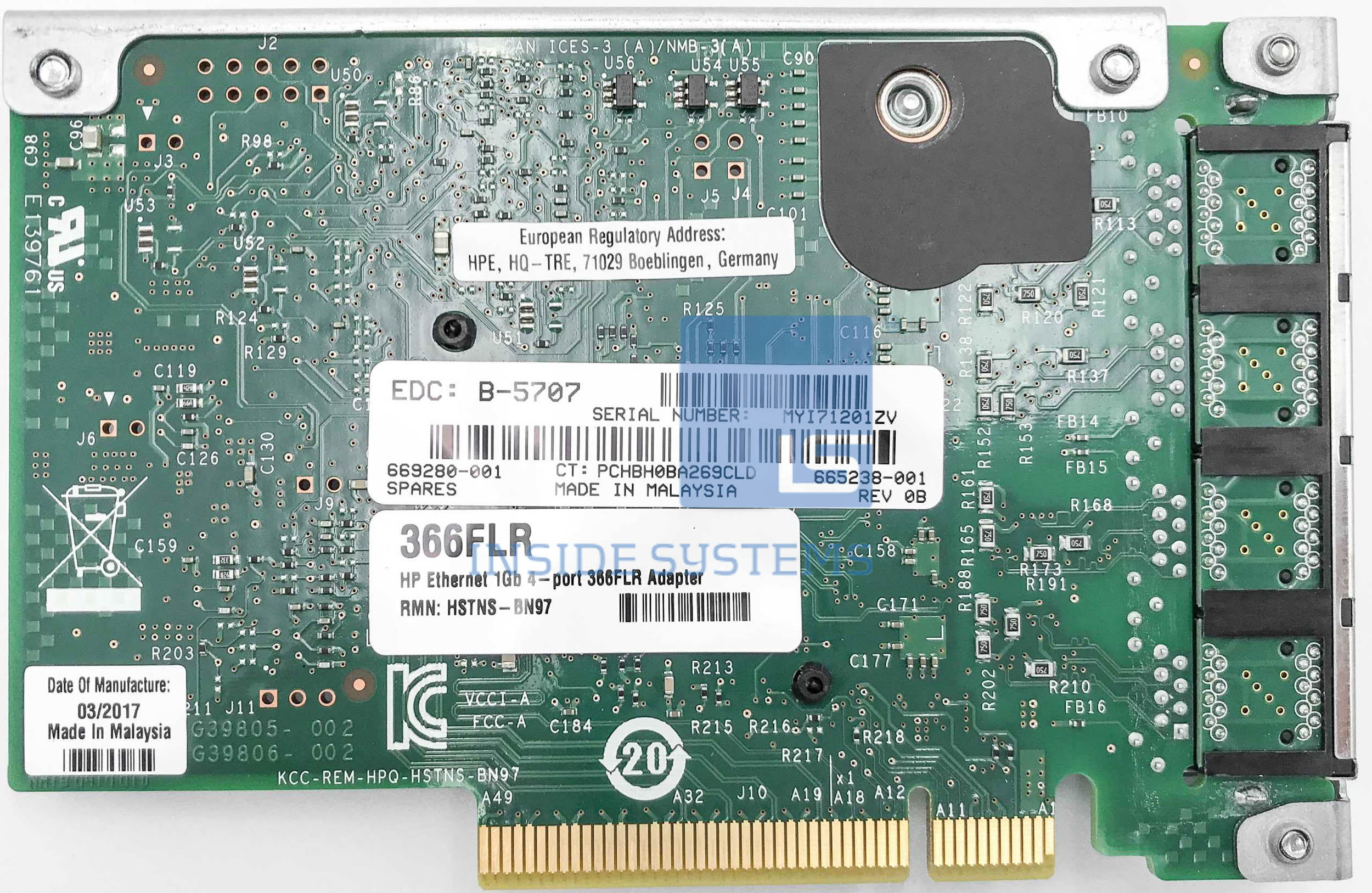

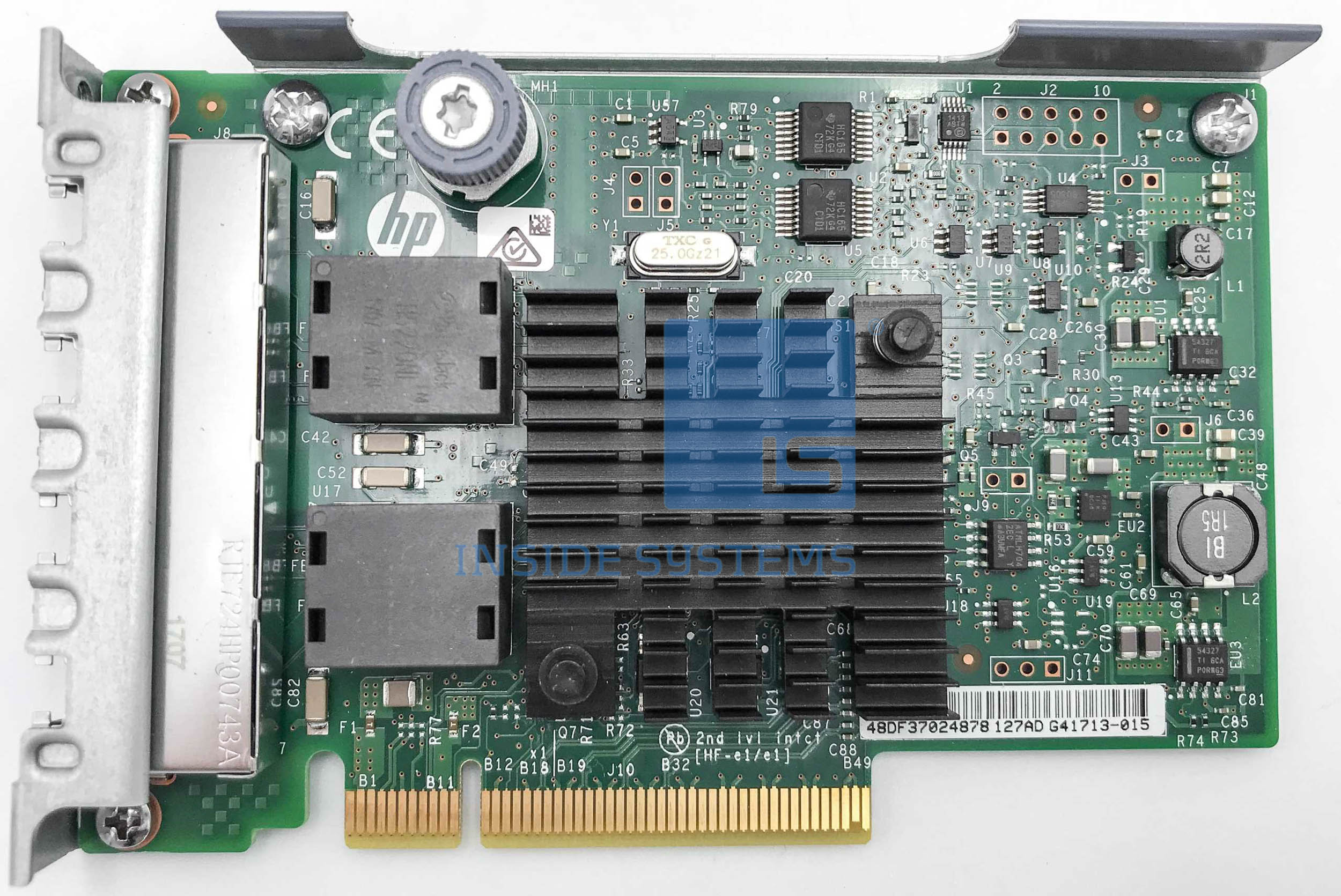

The HP 366FLR PCIe 4-Port 1Gb Ethernet Adapter (669280-001) is a high-performance network interface card designed to enhance the networking capabilities of HP ProLiant Gen8, Gen9, and Gen10 servers. Featuring four 10/100/1000BASE-T RJ-45 ports, this adapter delivers reliable and efficient network connectivity for data-intensive applications.

Built on the Intel I350 chipset, the 366FLR adapter supports advanced networking features such as Jumbo Frames, PXE boot, Large Send Offload (LSO), and VLAN tagging. Its FlexibleLOM form factor ensures seamless integration into compatible HP servers, providing a scalable and cost-effective solution for expanding network bandwidth.

Key Specifications

• Part Number: 669280-001

• Option Part Number: 665240-B21

• Form Factor: FlexibleLOM (FLR)

• Interface: PCI Express 2.1 x4

• Ports: 4 x 10/100/1000BASE-T RJ-45

• Data Transfer Rate: 1 Gbps per port

• Chipset: Intel I350

• Features:

  • Jumbo Frames support

  • PXE Boot support

  • Large Send Offload (LSO)

  • VLAN tagging

Compatibility

• HP ProLiant DL360 Gen8/Gen9/Gen10

• HP ProLiant DL380 Gen8/Gen9/Gen10

• HP ProLiant DL560 Gen8/Gen9

• HP ProLiant DL580 Gen8/Gen9

• HP Apollo 2000 and 4000 series

Operating Systems Supported

• Microsoft Windows Server

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• Oracle Solaris
