750054-001 – HP H241 12GB HBA PCIe3 x8 SAS Adapter

HP H241 12GBHBA PCIe3 x8 SAS Adapter – 750054-001

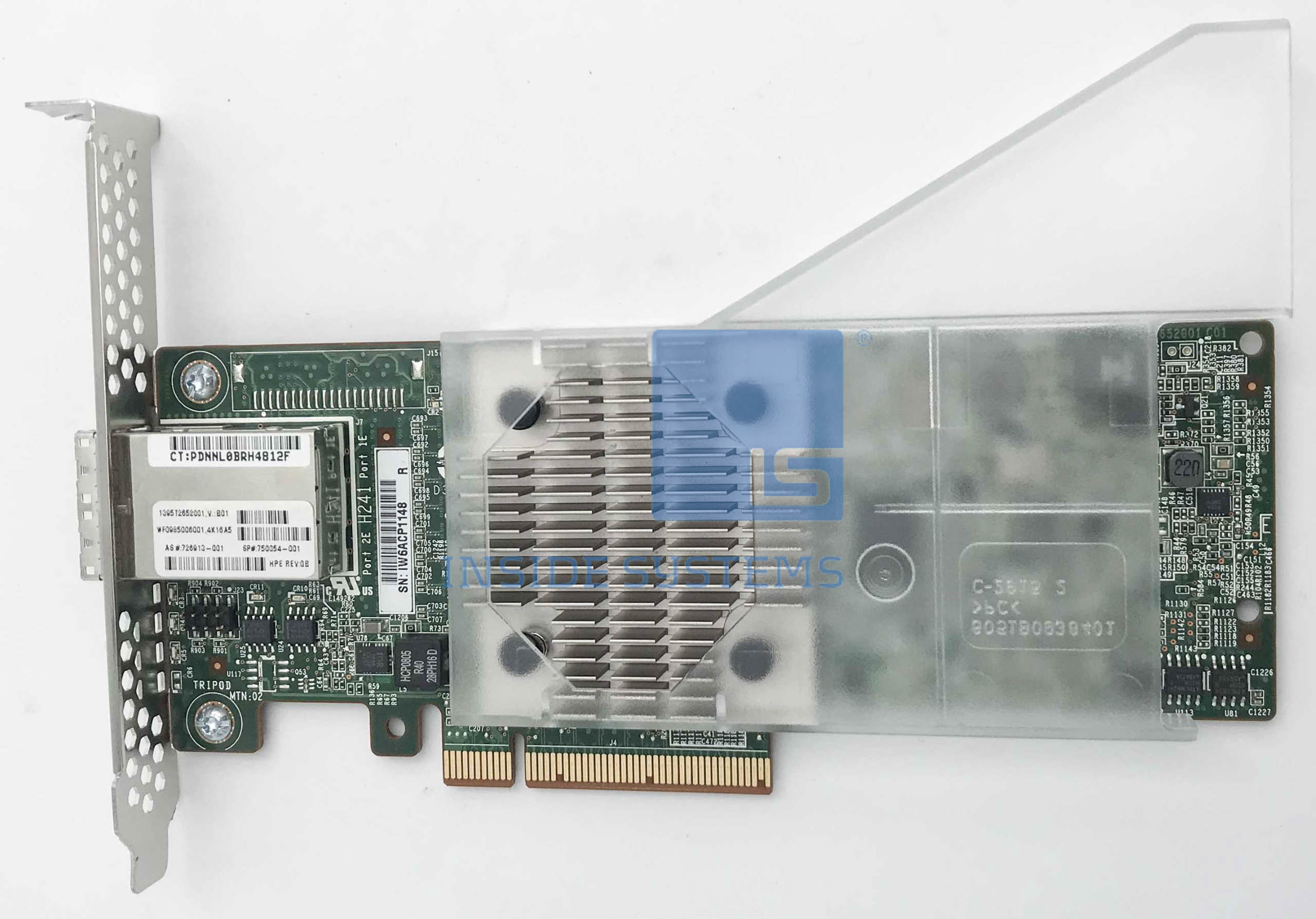

The HPE H241 Smart Host Bus Adapter (750054-001) is a high-performance 12Gb/s SAS controller designed to provide reliable and flexible connectivity for HPE ProLiant Gen9 servers. Featuring dual external Mini-SAS HD (SFF-8644) ports, this adapter supports up to eight external SAS or SATA drives, making it ideal for connecting to external storage enclosures, tape drives, or JBODs.

Operating in both HBA mode and simple RAID mode, the H241 offers support for RAID levels 0, 1, and 5, along with optional HPE Secure Encryption capabilities. Its PCIe 3.0 x8 interface ensures high data throughput, while the high-profile form factor allows for flexible deployment in various server configurations.

Key Specifications

• Part Number: 750054-001

• Option Part Number: 726911-B21

• Interface: PCI Express 3.0 x8

• Ports: 2 x external Mini-SAS HD (SFF-8644)

• Data Transfer Rate: 12Gb/s SAS, 6Gb/s SATA

• RAID Support: RAID 0, 1, 5 (simple RAID mode)

• Form Factor: high-profile plug-in card

• Compatibility: HPE ProLiant Gen9 servers (e.g., DL160, DL180, DL360, DL380, DL560, DL580, ML350, XL230b, XL250a, XL260a, XL270d, XL450)

• Use Cases: External storage connectivity, tape drive integration, JBOD expansion
